Polyphase Filter Bank with Sine Functions
This example shows the result of standard polyphase filter banks on channelizing a set of sine signal.
[2]:
from pathlib import Path
import numpy as np
import scipy.signal as sig
from mitarspysigproc import (
pfb_decompose,
pfb_reconstruct,
kaiser_coeffs,
kaiser_syn_coeffs,
)
import matplotlib.pyplot as plt
[3]:
def create_sin(t_len, fs, bw, nchans, pad):
"""Creates a signal with multiple cosines
Parameters
----------
t_len : float
Length of chirp in seconds
fs : float
Sampling frequency in Hz
bw : float
Bandwidth of chirp
nzeros : tuple
Number of zeros to pad in the begining and end of the array.
nchans : int
Number of channels for the PFB
nslice : int
Number of time samples from the pfb
Returns
-------
tout : ndarray
The time vector for the created signal
xout : ndarray
Created signal
"""
s_list = np.arange(int(nchans * bw / fs))
t = np.linspace(0, t_len, t_len * fs)
flist = [np.cos(2 * np.pi * (i / nchans) * fs * t) for i in s_list]
x = sum(flist)
xout = np.concatenate((pad[0], x, pad[1]), axis=0)
tp1 = -1 * np.arange(0, len(pad[0]), dtype=float)[::-1] / fs
tp2 = np.arange(0, len(pad[1]), dtype=float) / fs + t_len
tout = np.concatenate((tp1, t, tp2), axis=0)
return tout, xout
def runsintest(t_len, fs, bw, nzeros, nchans):
"""Creates a superposition of sin waves and runs the standard PFB analysis and reconstruction
Parameters
----------
t_len : float
Length of chirp in seconds
fs : float
Sampling frequency in Hz
bw : float
Bandwidth of chirp
nzeros : int
Number of zeros to pad
nchans : int
Number of channels for the PFB
Returns
-------
x_rec : ndarray
Reconstructed signal
tin : ndarray
The time vector for the input signal
x : ndarray
Input signal
x_pfb : ndarray
The ouptut data
"""
pad = [np.zeros(nzeros), np.zeros(nzeros)]
t, x = create_sin(t_len, fs, bw, nchans, pad)
coeffs = kaiser_coeffs(nchans, pow2=False)
mask = np.ones(nchans, dtype=bool)
xout = pfb_decompose(x, nchans, coeffs, mask)
fillmethod = ""
fillparams = [0, 0]
syn_coeffs = kaiser_syn_coeffs(nchans, pow2=False)
x_rec = pfb_reconstruct(
xout, nchans, syn_coeffs, mask, fillmethod, fillparams=[], realout=True
)
return x_rec, t, x, xout
def nexpow2(x):
"""Returns the next power of two.
Parameters
----------
x : int
Inital number.
Returns
-------
int
The next power of two of x.
"""
return int(np.power(2, np.ceil(np.log2(x))))
def plotdata(inchirp, outchirp, tin, tout,g_del=0):
"""Plot the data and return the figure.
Parameters
----------
x : ndarray
Input signal
x_rec : ndarray
Reconstructed signal
tin : ndarray
The time vector for the input signal
tout : ndarray
The time vector for the output signal
Returns
-------
fig : matplotlib.fig
The matplotlib fig for plotting or saving.
"""
fig, ax = plt.subplots(2, 1, figsize=(10, 5))
inlen = inchirp.shape[0]
outlen = outchirp.shape[0]
tau = tin[1] - tin[0]
ax[0].plot(tin, inchirp, label="Input")
ax[0].plot(tout, np.roll(outchirp,-g_del), label="Output")
ax[0].set_xlabel("Time in Seconds")
ax[0].set_ylabel("Amplitude")
ax[0].set_title("Time Domain")
ax[0].grid(True)
nfft_in = nexpow2(inlen)
nfft_out = nexpow2(outlen)
in_freq = np.fft.fftshift(np.fft.fftfreq(nfft_in, d=tau))
out_freq = np.fft.fftshift(np.fft.fftfreq(nfft_out, d=tau))
spec_in = np.abs(np.fft.fftshift(np.fft.fft(inchirp, n=nfft_in))) ** 2
spec_out = np.abs(np.fft.fftshift(np.fft.fft(outchirp[:, 0], n=nfft_out))) ** 2
spec_in_log = 10 * np.log10(spec_in)
spec_out_log = 10 * np.log10(spec_out)
ax[1].plot(in_freq, spec_in_log, label="Input")
ax[1].plot(out_freq, spec_out_log, label="Output")
ax[1].set_xlabel("Frequency in Hz")
ax[1].set_ylabel("Amp dB")
ax[1].set_title("Frequency Content")
ax[1].grid(True)
ax[1].set_ylim([0, 90])
fig.tight_layout()
return fig
[4]:
t_len = 5
fs = 10000
bw = 2000
nzeros = 20000
nchans = 32
x_rec, t, x, _ = runsintest(t_len, fs, bw, nzeros, nchans)
x_rec = x_rec[: len(x)]
g_del = nchans * (64 - 1) // 2

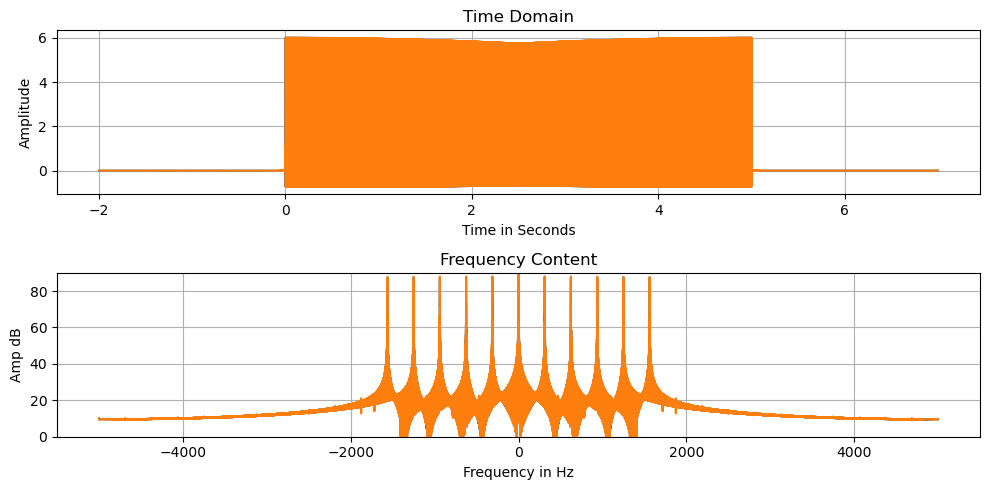

fig = plotdata(x, x_rec, t, t,2*g_del)
[ ]:
